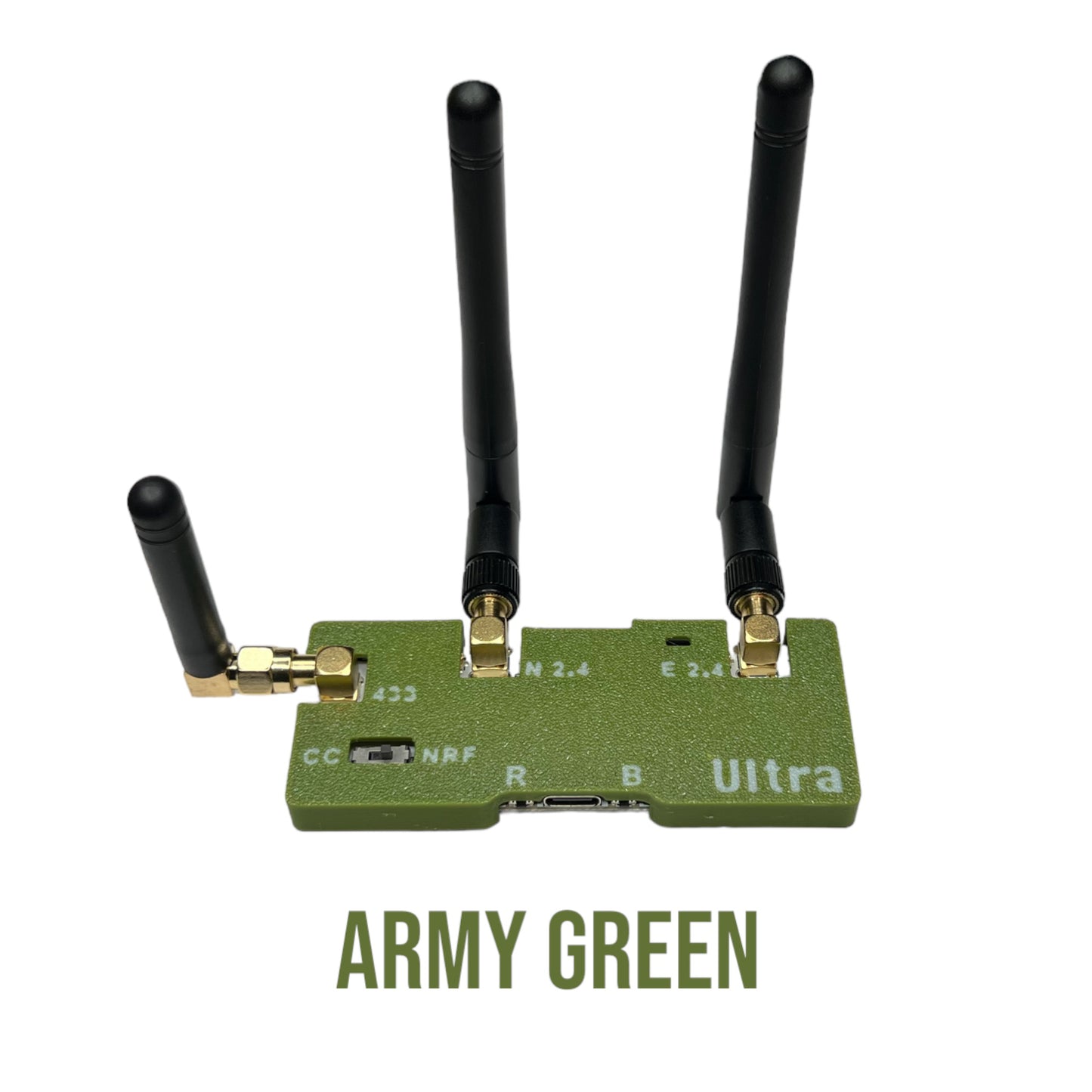

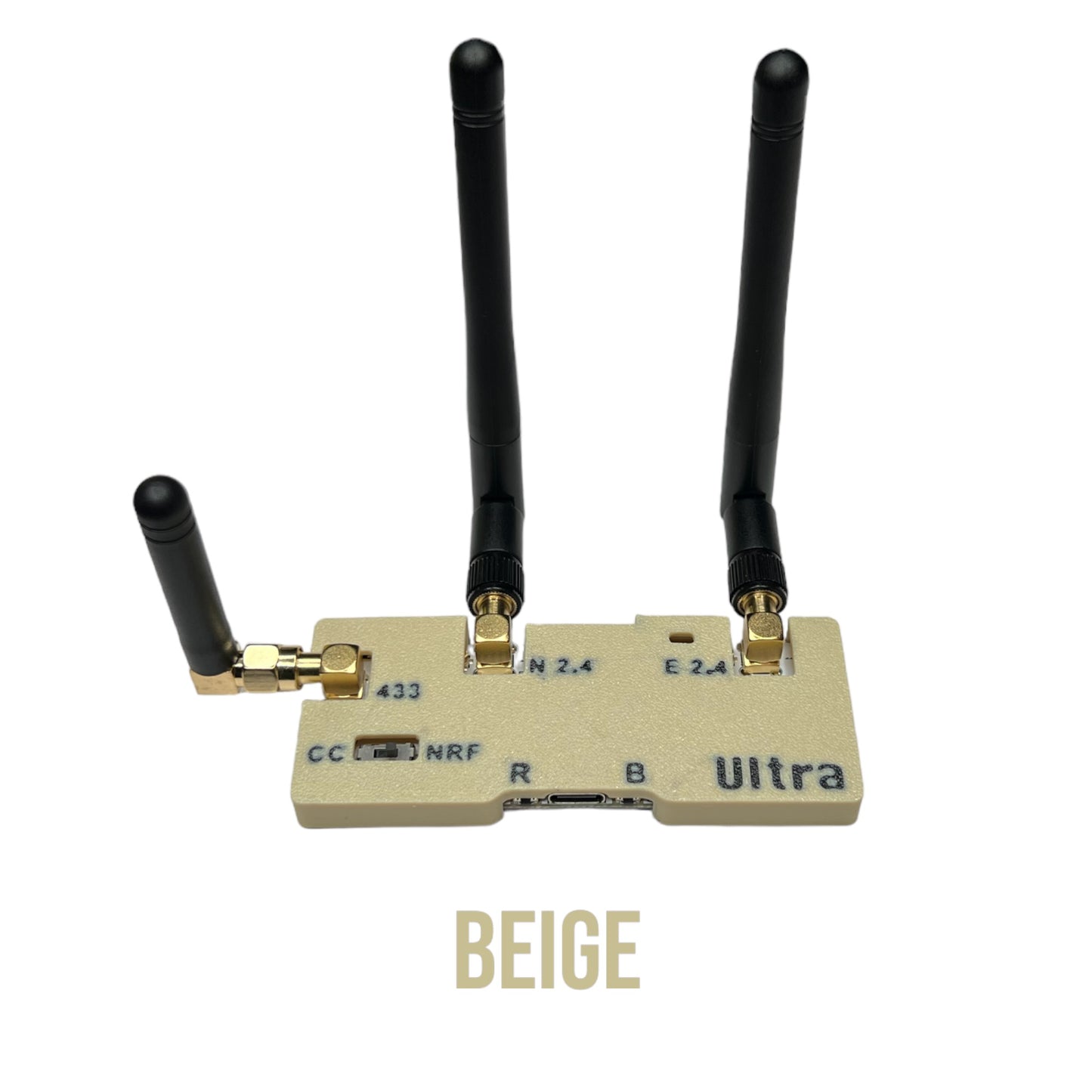

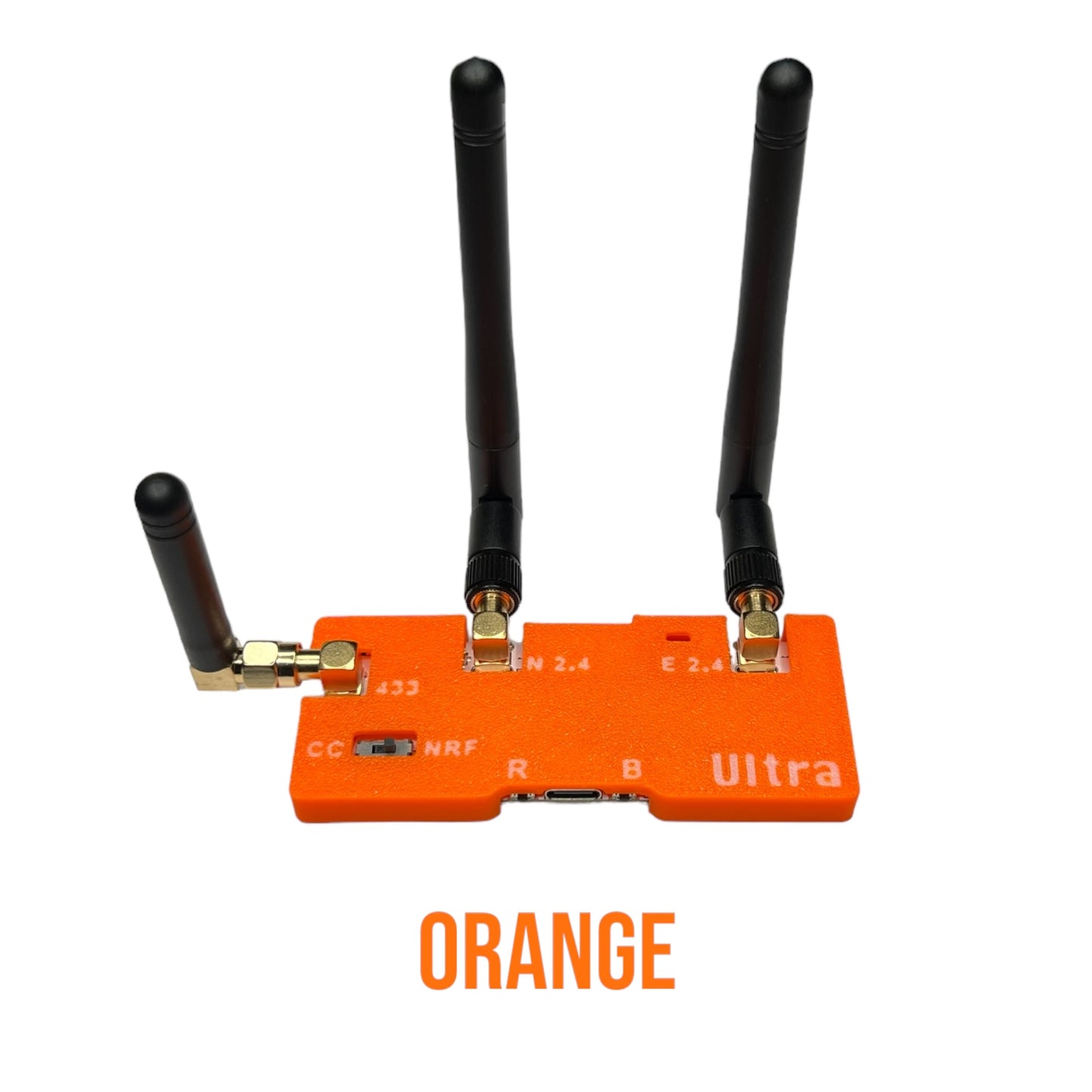

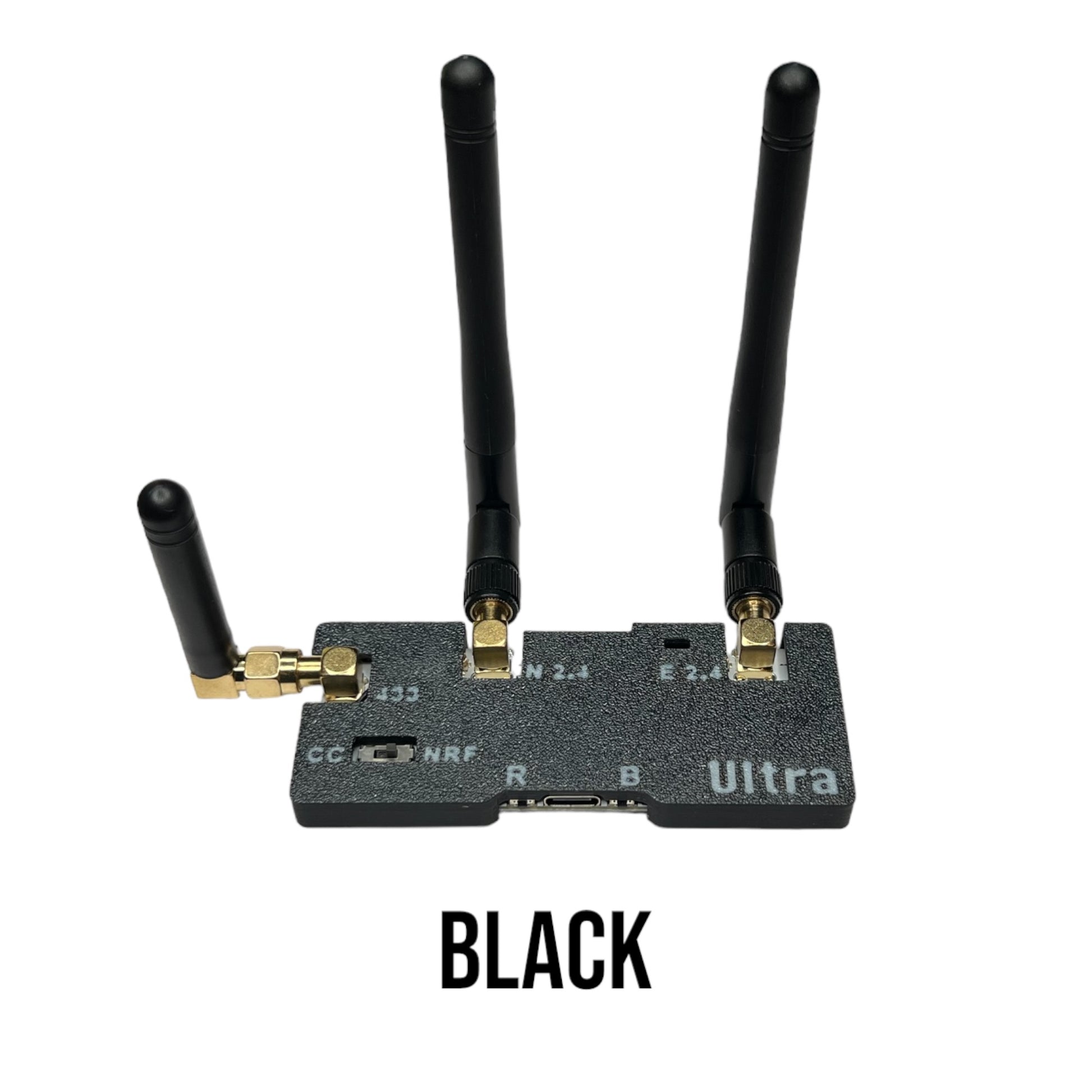

FlipMods Ultra V3 board with a 3D printed case and has the ESP-WROOM-32, NRF24, and CC1101. The ESP32 is used for Marauder applications and will come preloaded with Marauder. The NRF24 is used for NRF sniffer applications. CC1101 used with the 433MHz antenna will help increase the range of transmission/reception of the subghz radio signal.

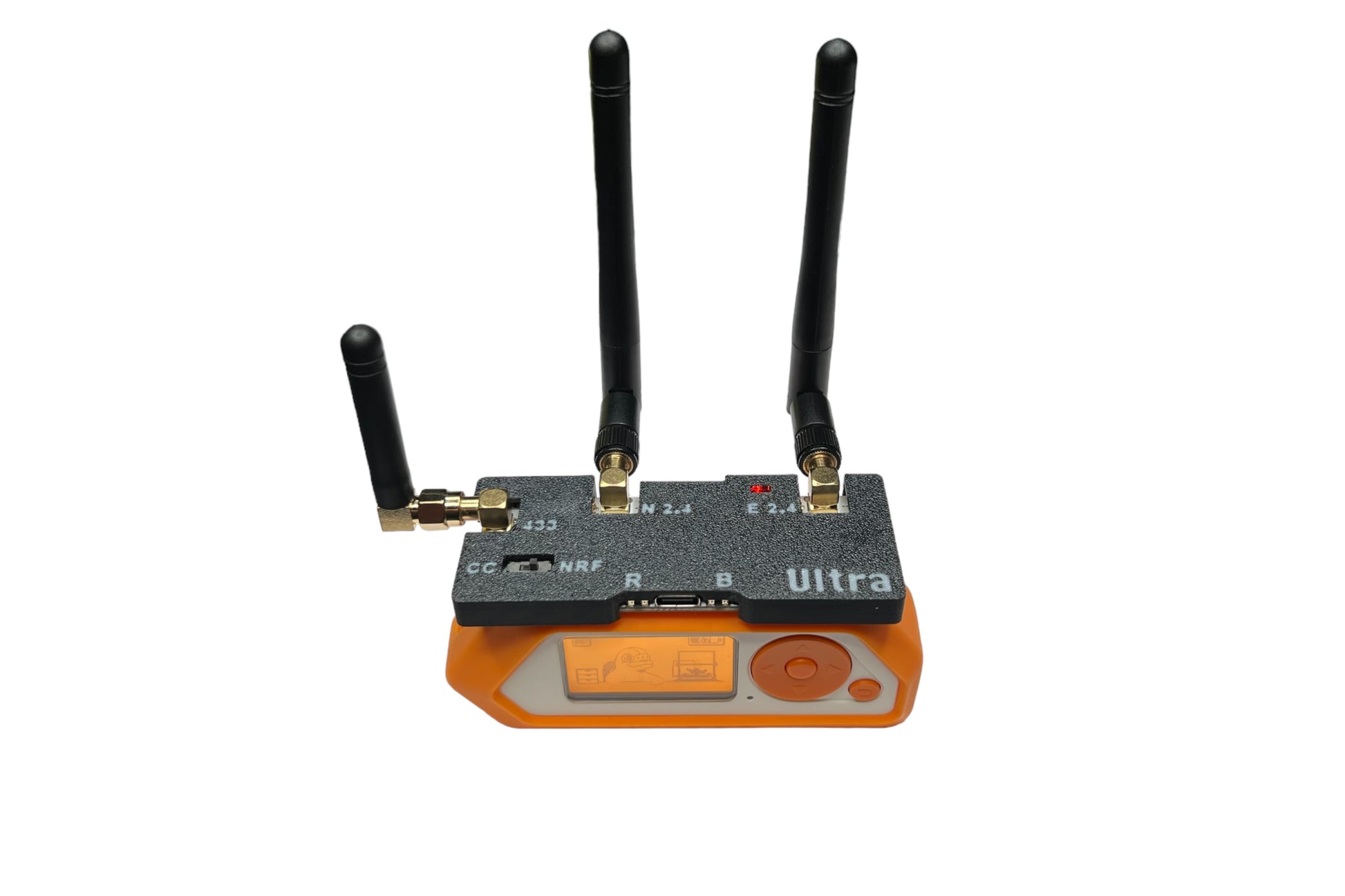

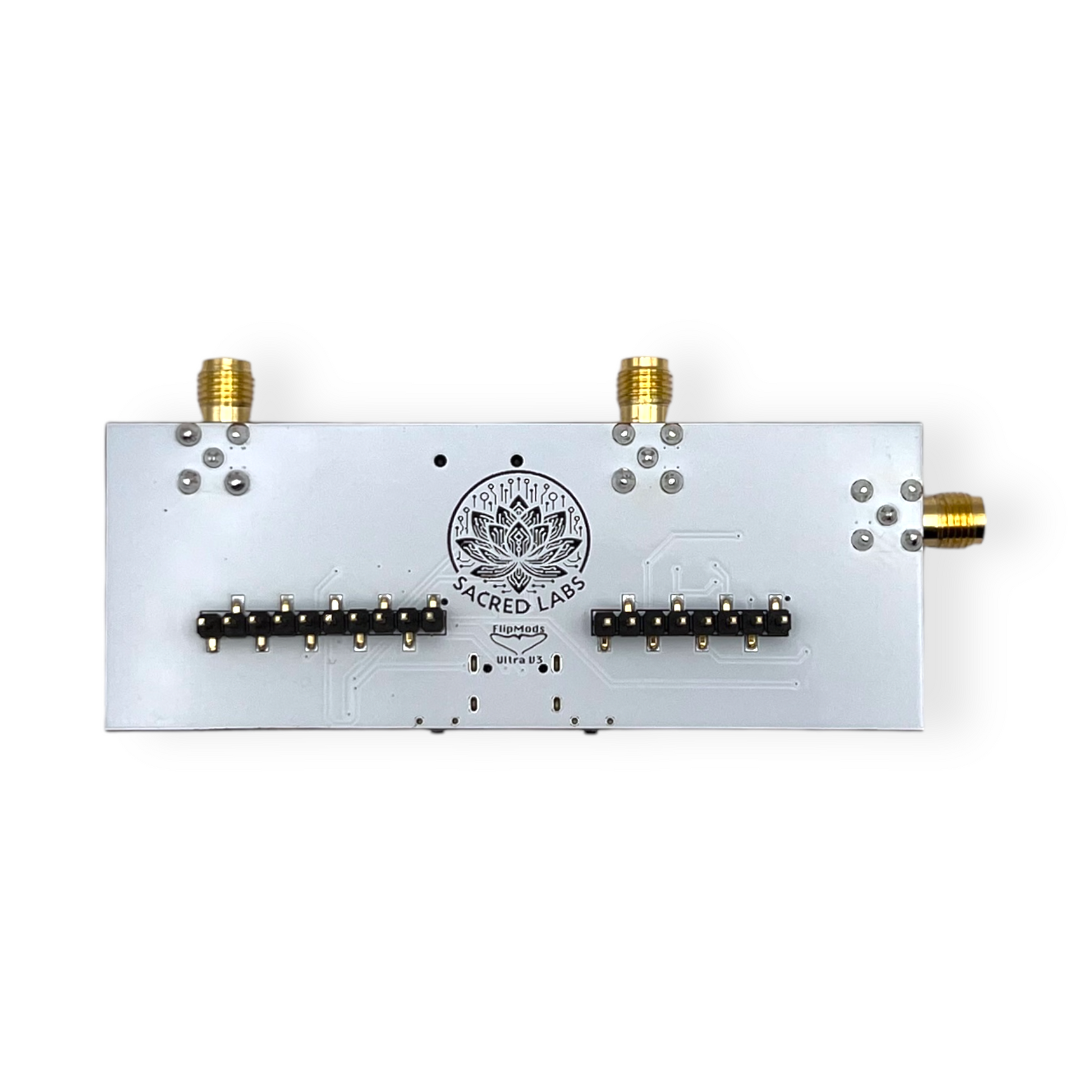

The board plugs into the GPIO pins of the flipper zero. Designed to fit even if you’re using the official flipper zero silicone case on the device. Includes a pin cover.
There is a USB-C port on the board to use for the ESP32 so you could update the firmware.

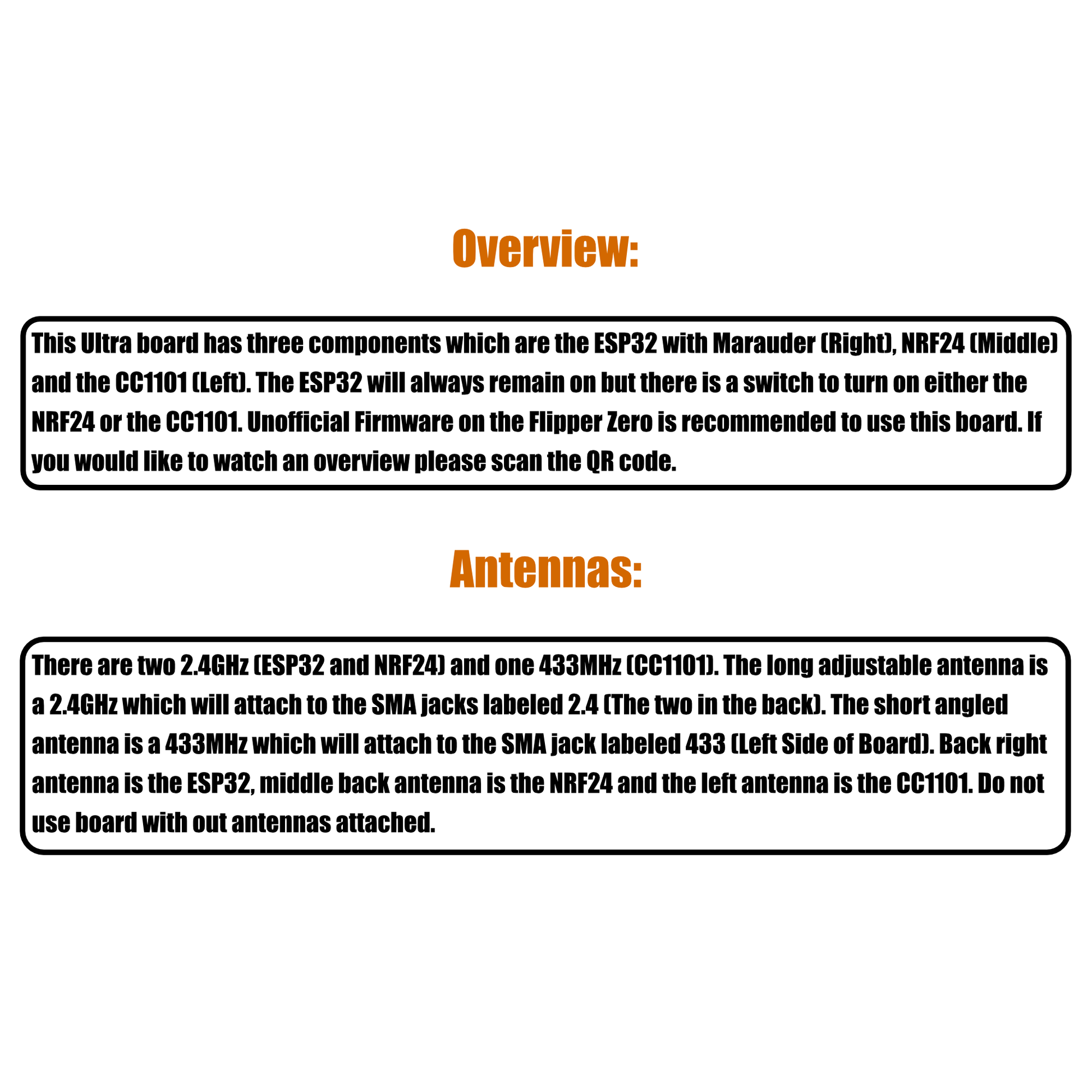

ESP32 antenna is located back right. NRF24 antenna is located back middle. CC1101 antenna is located left. Please use the correct antennas for each one. 433MHz for the CC1101 and 2.4GHz for the ESP32 and NRF24.
No need to turn on 5V since all components are running on 3.3V.

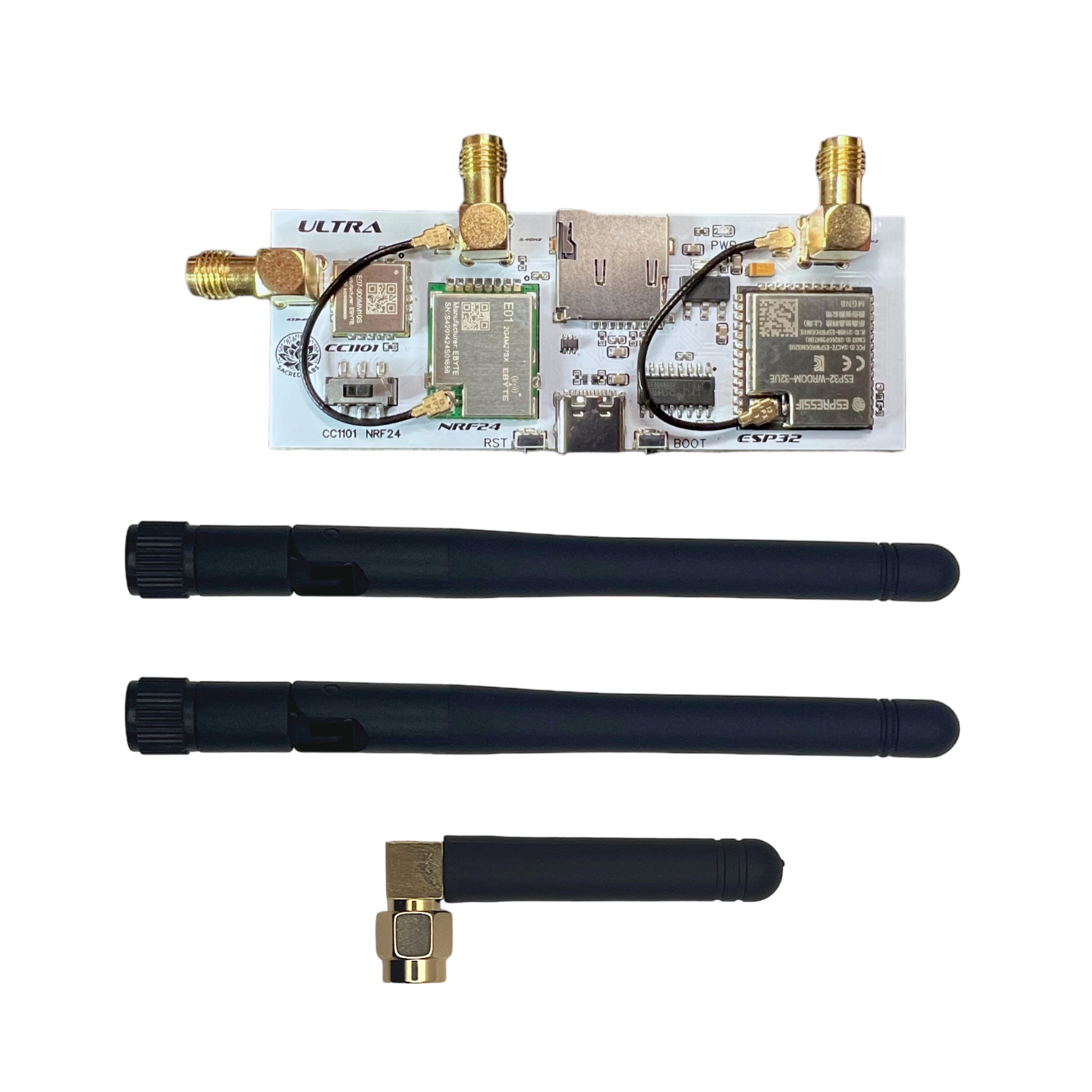

What's included: Antennas (1x 433Mhz and 2x 2.4Ghz), 3D Printed Case and Ultra V3.
3D printed using PETG in a Bambu Labs X1-Carbon.
Flipper Zero is not included
Do NOT unplug modules that are in use
You will need applications/firmware (Such as Momentum, Unleashed, RogueMaster or Xtreme) to support marauder and NRF24 tools on your Flipper Zero.
Disclaimer:
By purchasing, you understand all the following disclaimers: You are responsible for following all laws and regulations in your jurisdiction. Device case is 3D-printed in PETG, so there may be slight variations.
