Elite V2 ESP32-C5/NRF24/CC1101/GPS 4in1 for Flipper Zero

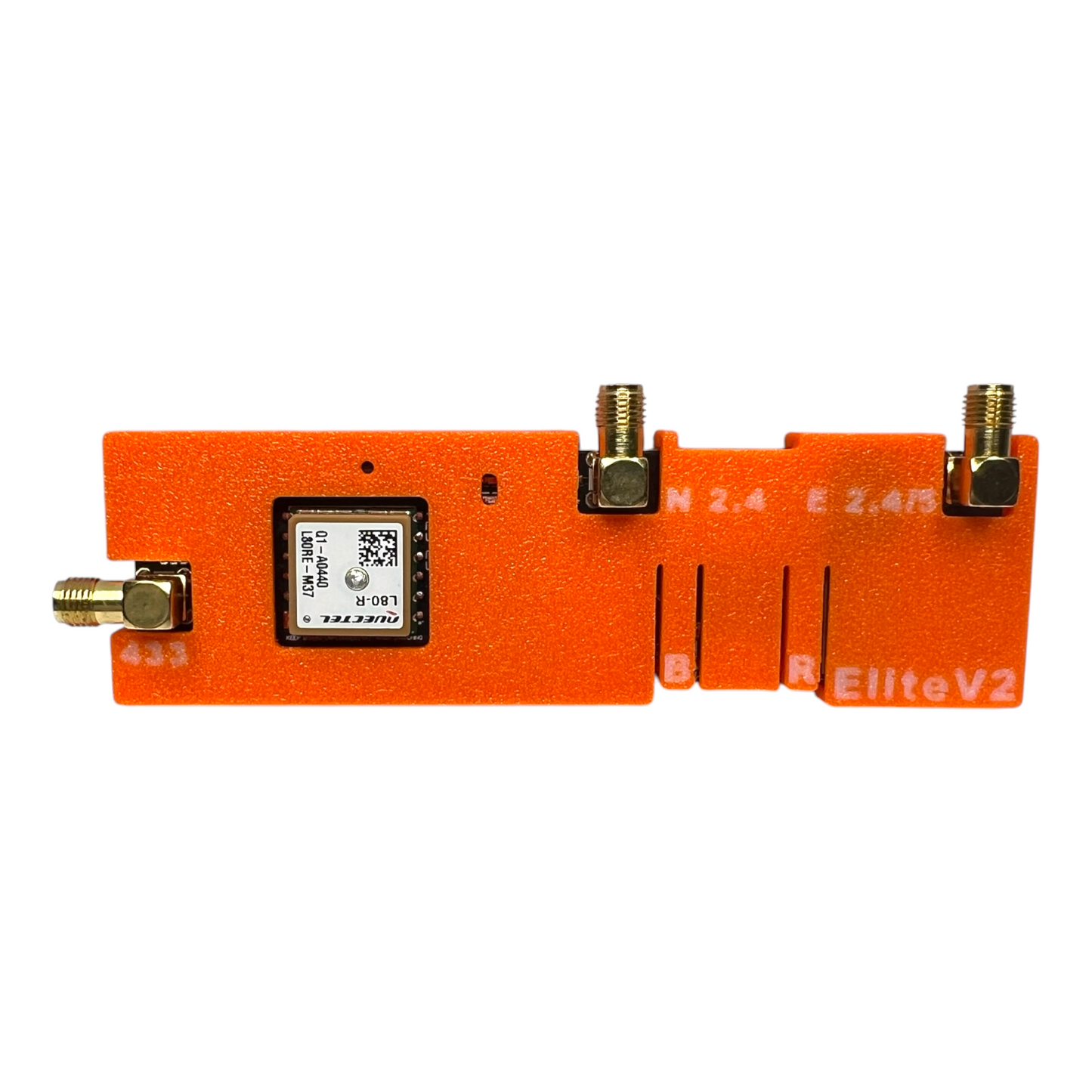

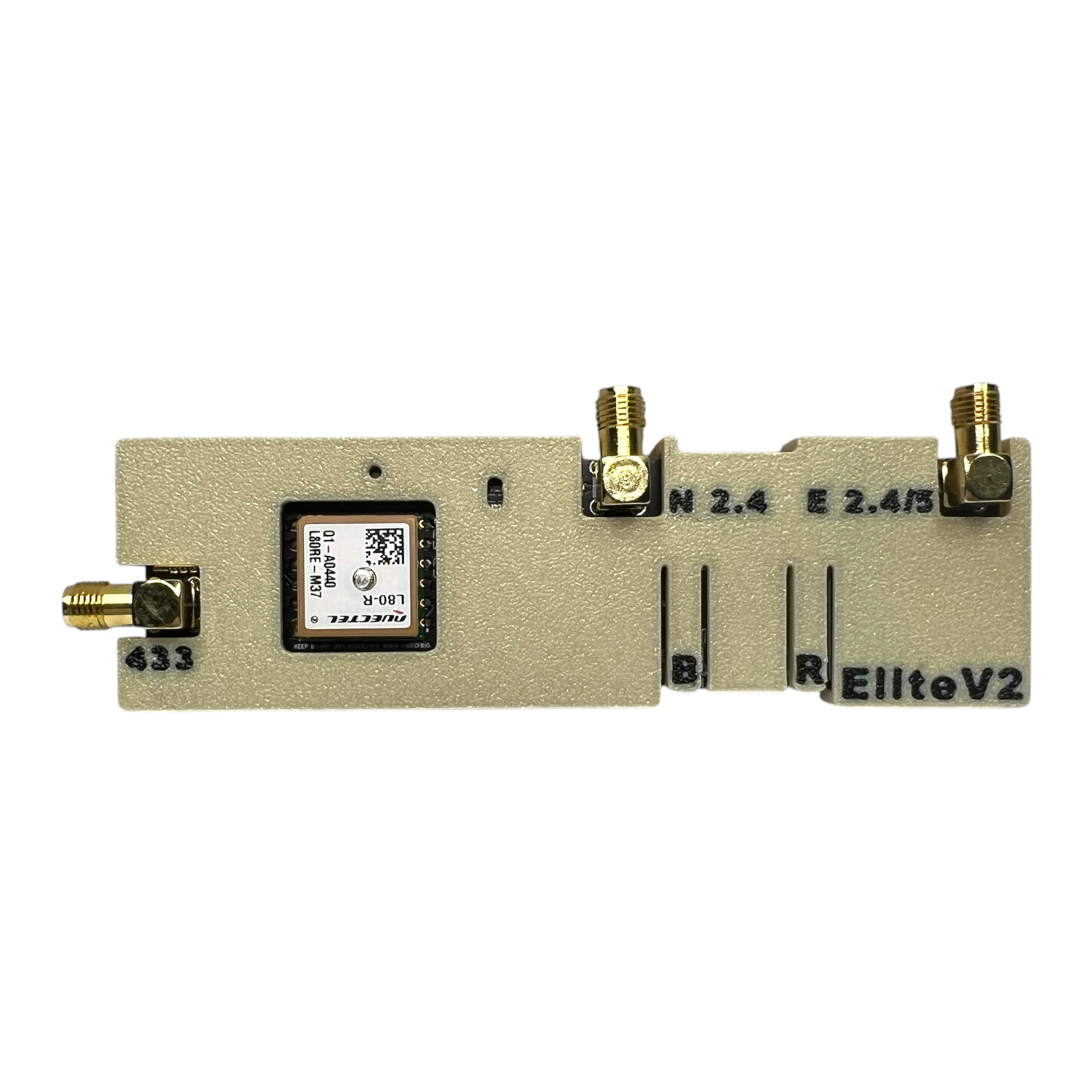

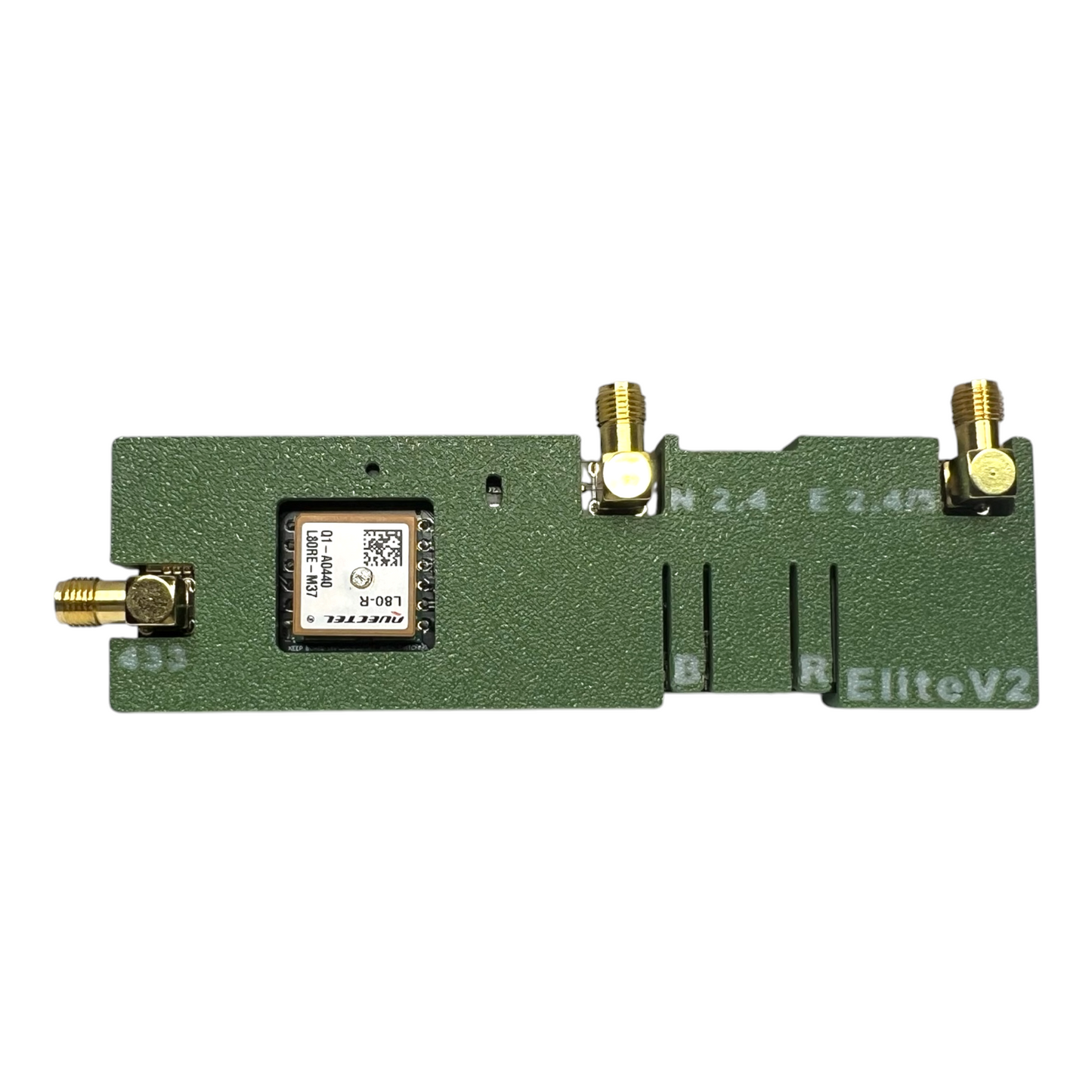

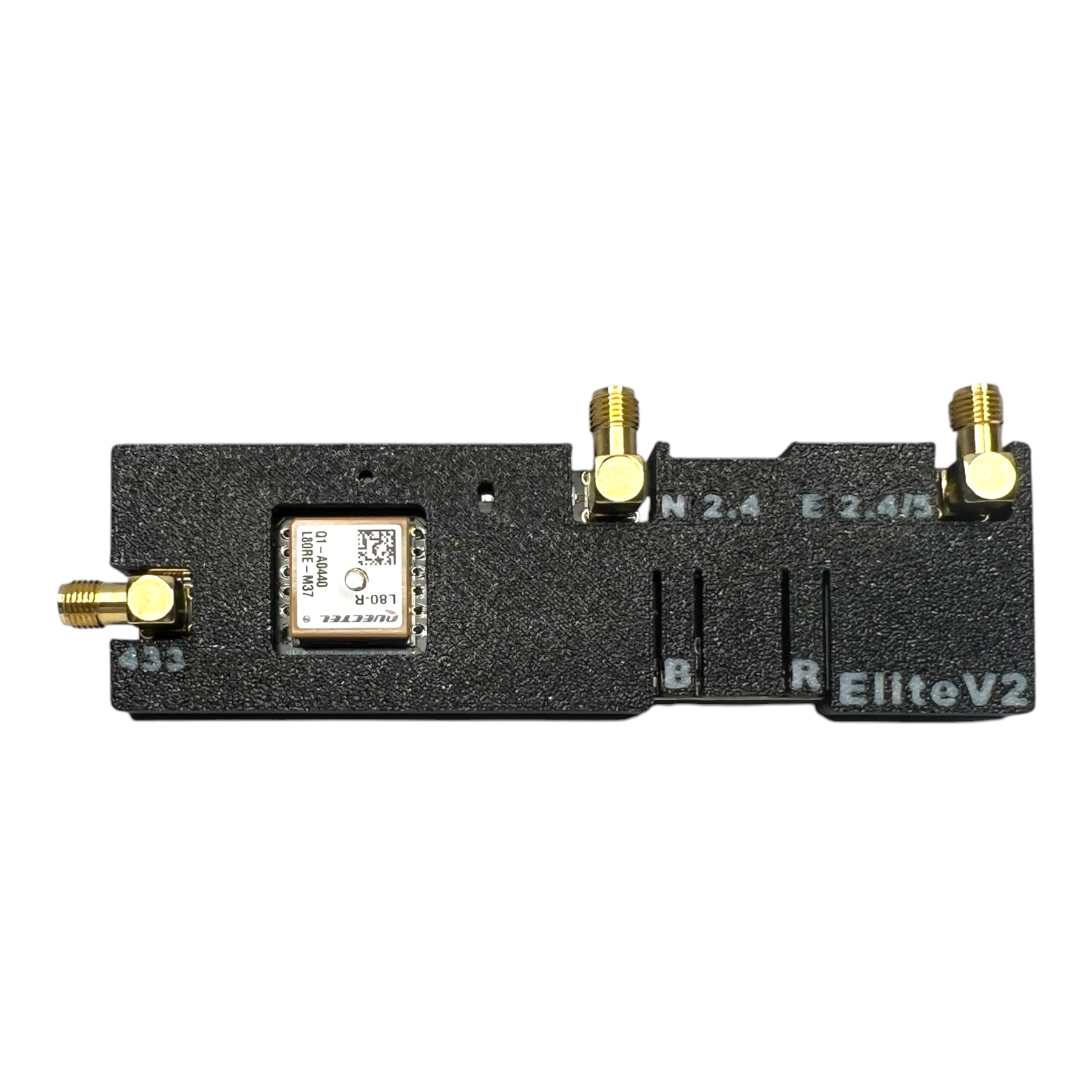

FlipMods Elite V2 board with a 3D printed case and has the ESP32-C5, NRF24, CC1101 and GPS. The ESP32-C5 is a dual band chip (2.4/5Ghz) is used for Marauder applications and will come preloaded with Marauder. The NRF24 is used for NRF sniffer applications. CC1101 used with the 433MHz antenna will help increase the range of transmission/reception of the subghz radio signal. GPS to ESP32 will send the GPS data to the ESP32 which will be used for Marauder. GPS to FZ will send the GPS data to pins 15/16 of the Flipper Zero to use the NMEA GPS app.

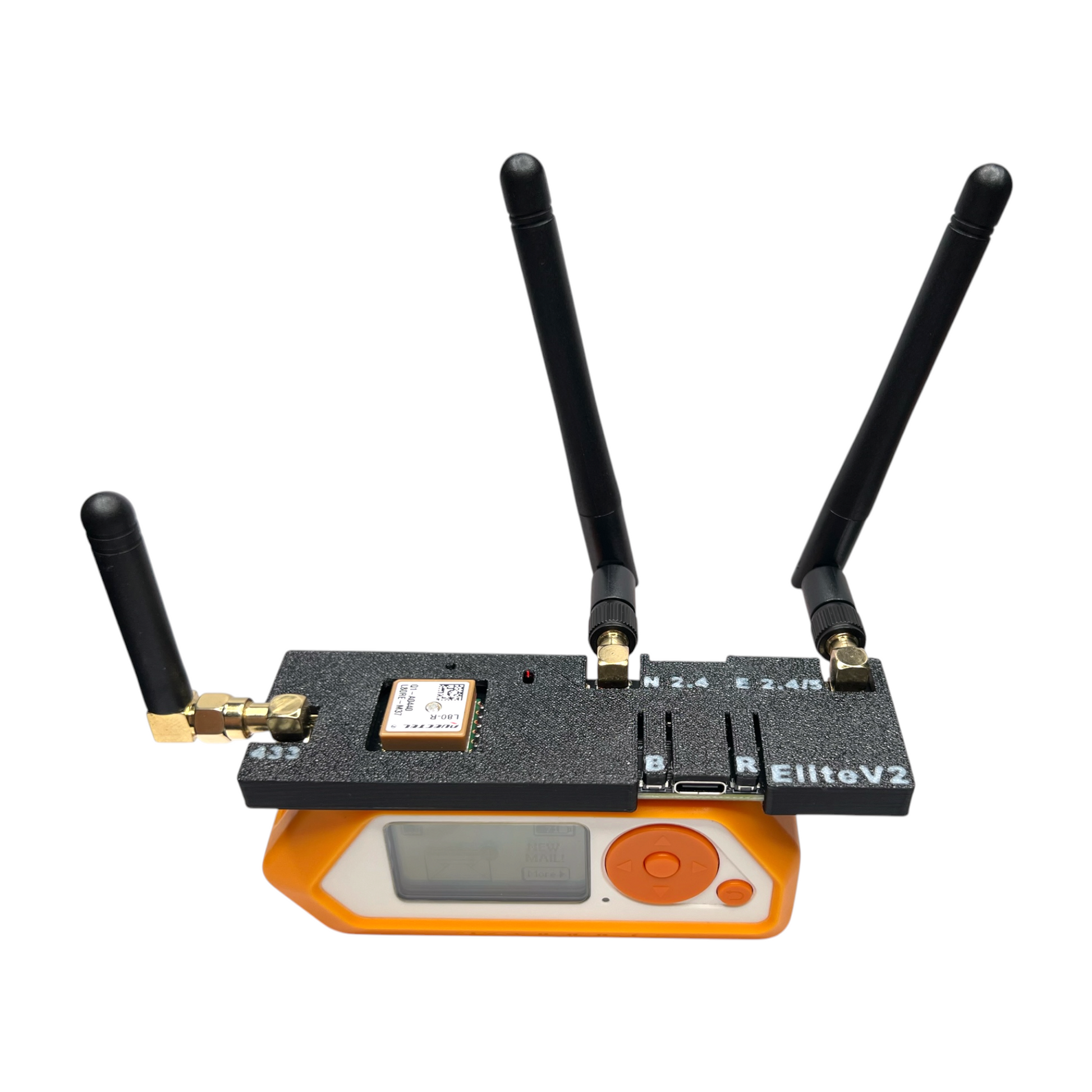

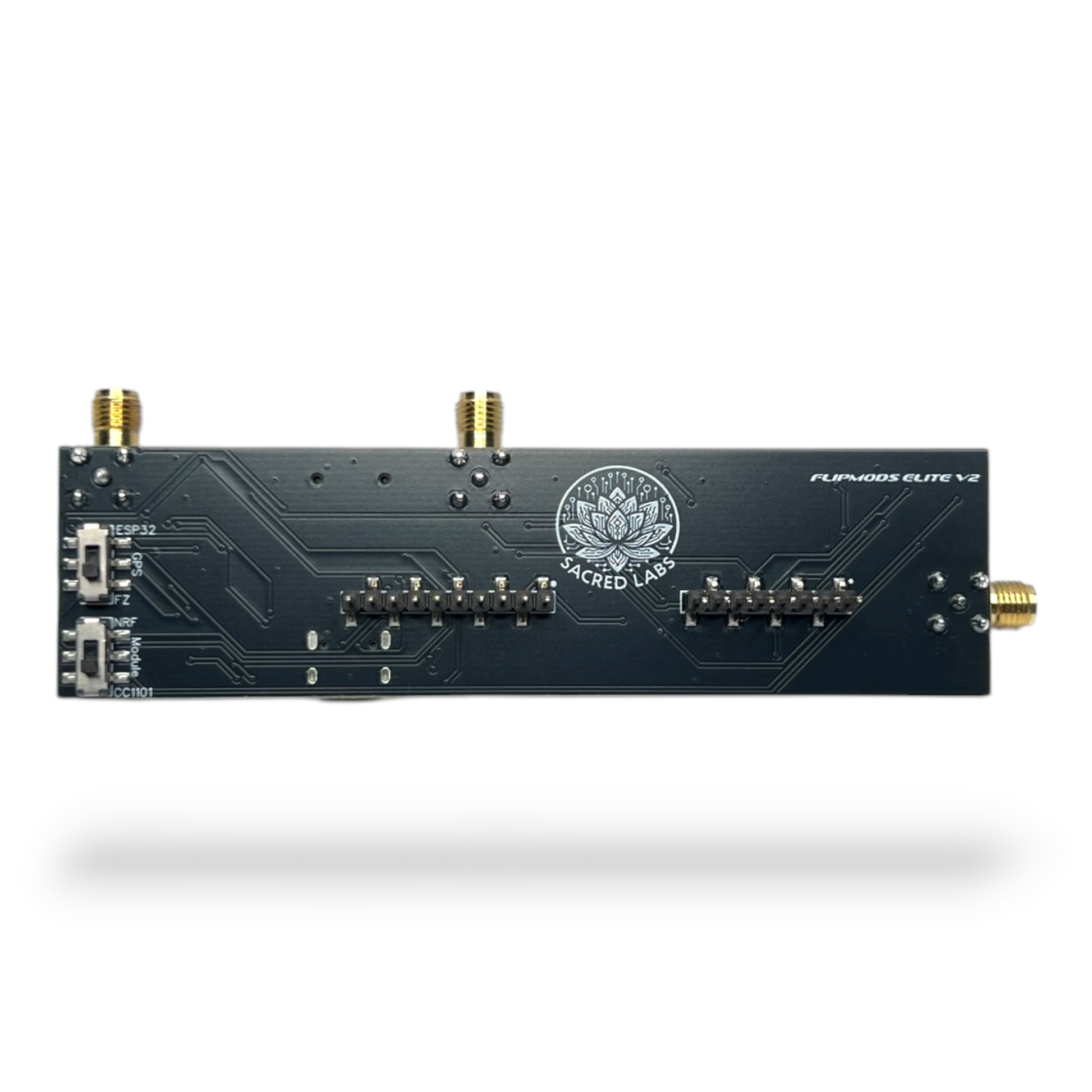

The board plugs into the GPIO pins of the flipper zero. Designed to fit even if you’re using the official flipper zero silicone case on the device. Includes a pin cover.

There is a USB-C port on the board to use for the ESP32-C5 so you could update the firmware.

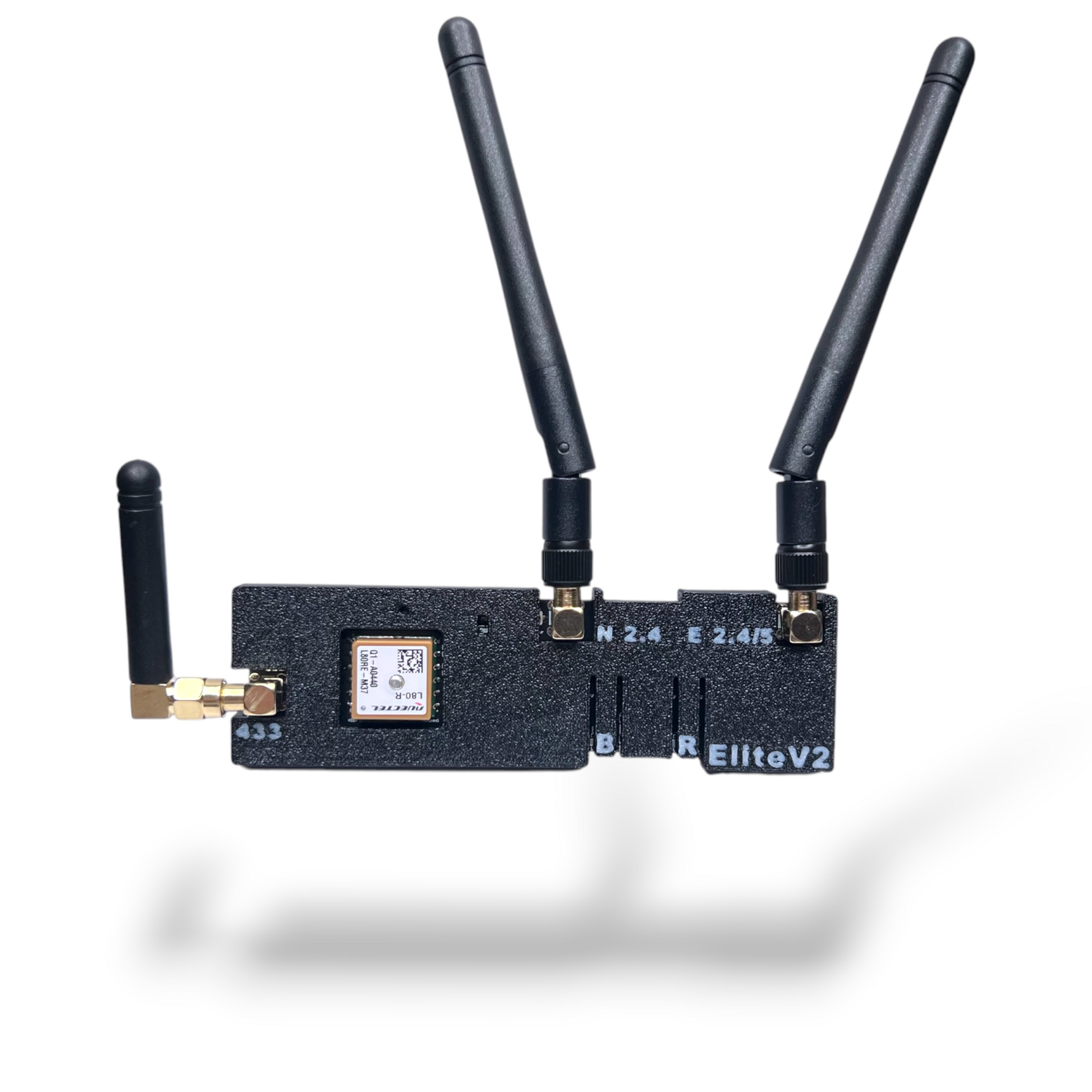

ESP32 antenna is located back right. NRF24 antenna is located back middle. CC1101 antenna is located left. Please use the correct antennas for each one. 433MHz for the CC1101 and 2.4/5GHz for the ESP32 and NRF24.

No need to turn on 5V since all components are running on 3.3V.

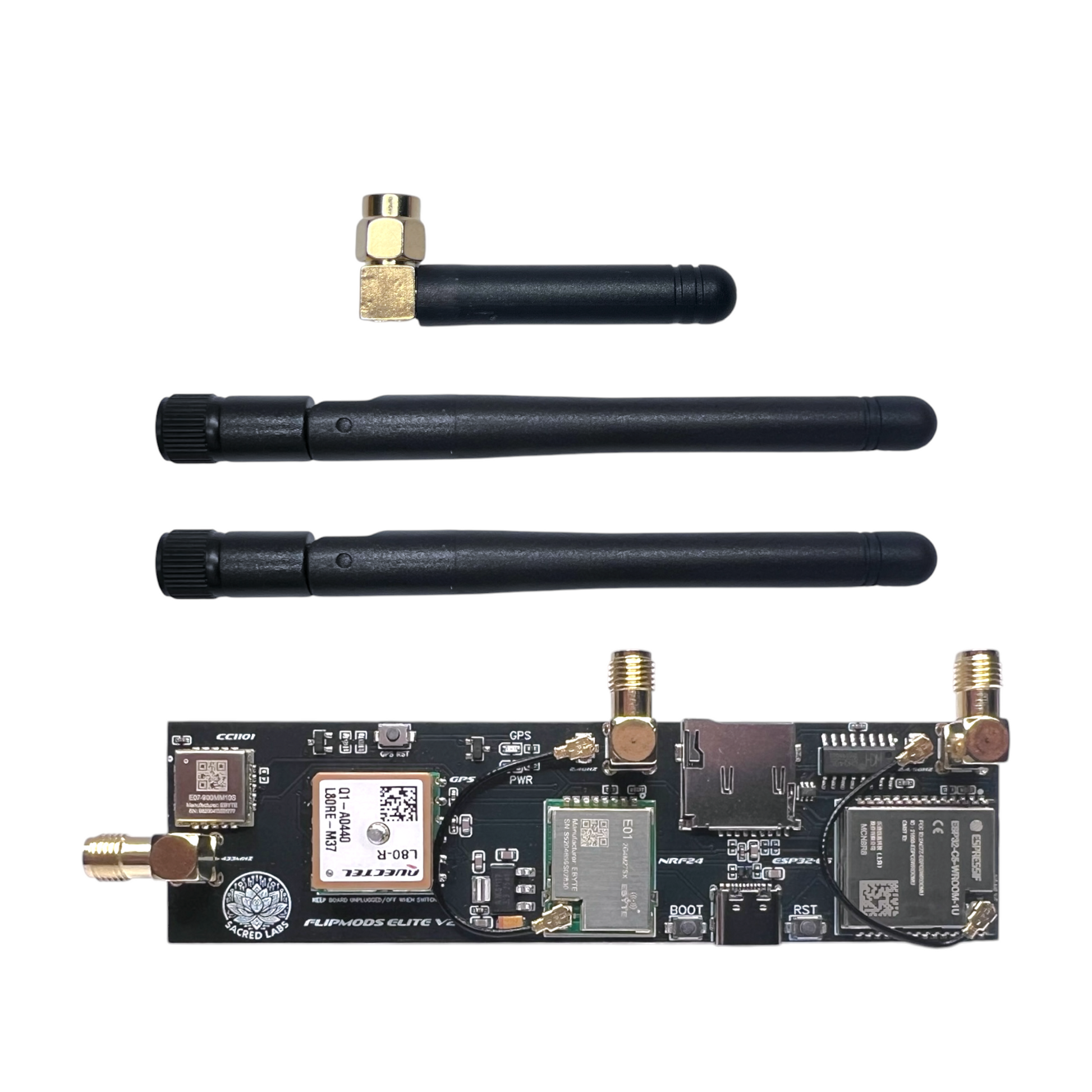

What's included: Antennas (1x 433Mhz and 2x 2.4/5Ghz), 3D Printed Case and Elite V2.

3D printed using PETG in a Bambu Labs X1-Carbon.

• Flipper Zero is not included

• Do NOT unplug modules that are in use

• You will need applications/firmware (Such as Momentum, Unleashed, RogueMaster or Xtreme) to support marauder and NRF24 tools on your Flipper Zero.

Disclaimer:

By purchasing, you understand all the following disclaimers: You are responsible for following all laws and regulations in your jurisdiction. Device case is 3D-printed in PETG, so there may be slight variations.
